Flexible Solvent Waste Management with Controlled Vapor Venting
For laboratories running multiple HPLC lines or requiring additional flow paths, the JM Science 3-Port Safety Cap provides a secure, closed system for solvent waste collection — complete with an integrated vent filter for controlled vapor release.
🟦 CORE POSITIONINGÂ
The 3-port configuration allows multiple waste lines while maintaining safe, controlled ventilation through an integrated vent filter — ideal for higher-throughput or multi-instrument setups.
🟦 KEY FEATURES
- Three-port configuration for multiple waste lines
- Integrated vent filter (included standard)
- 6-month replacement indicator (Timestrip)
- GL45 thread compatibility
- Closed-system design reduces solvent vapor exposure
- Color-coded fittings for organized tubing connections
- Ready-to-use system — no additional components required
🟦 HOW IT WORKS (UPDATED)
The 3-port configuration provides:
- Two ports for HPLC waste tubing
- One port for controlled ventilation through the vent filter
As solvent waste is collected from multiple sources, vapors are directed through the integrated vent filter, helping reduce solvent vapor release while maintaining safe pressure balance.

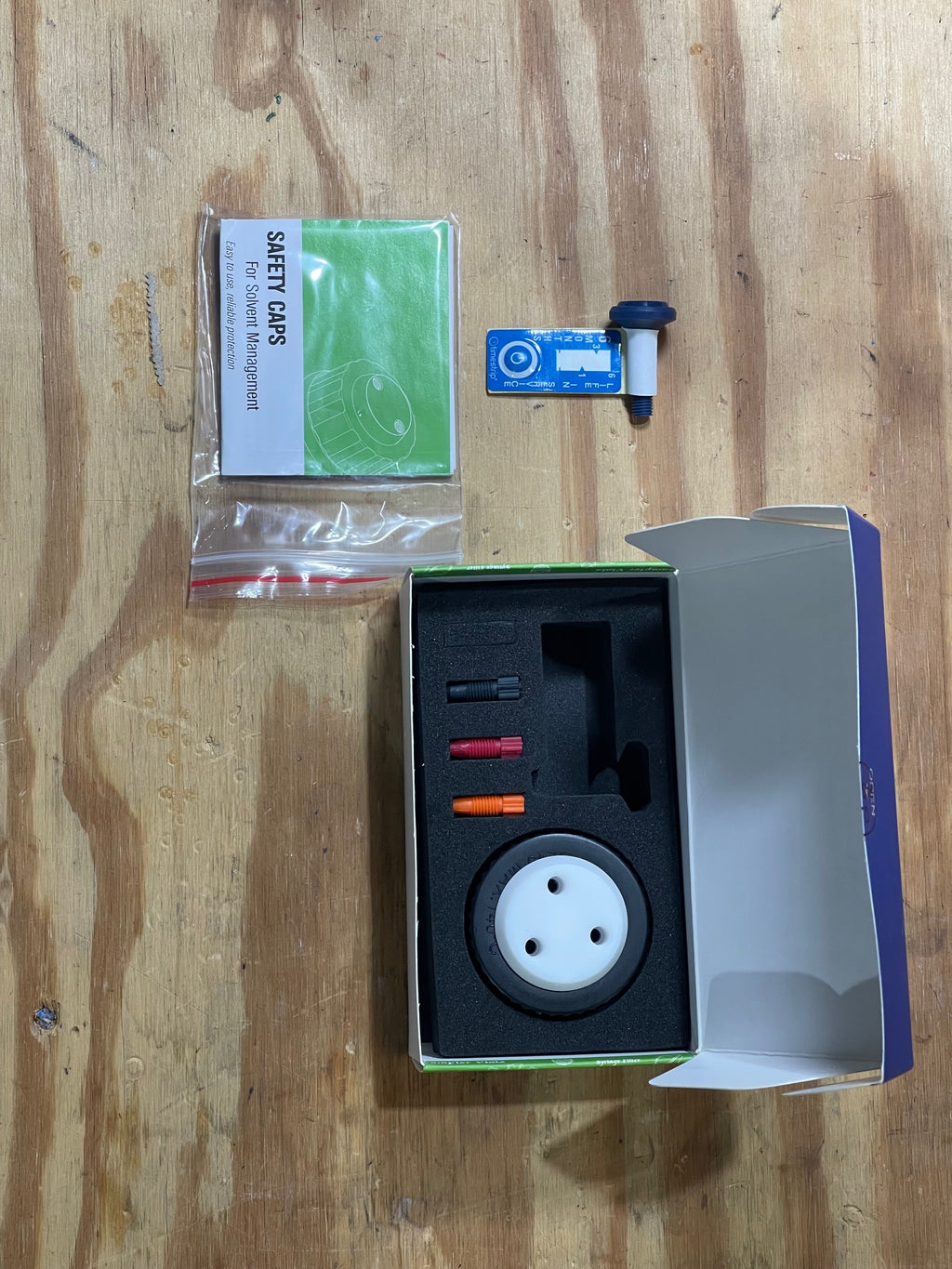

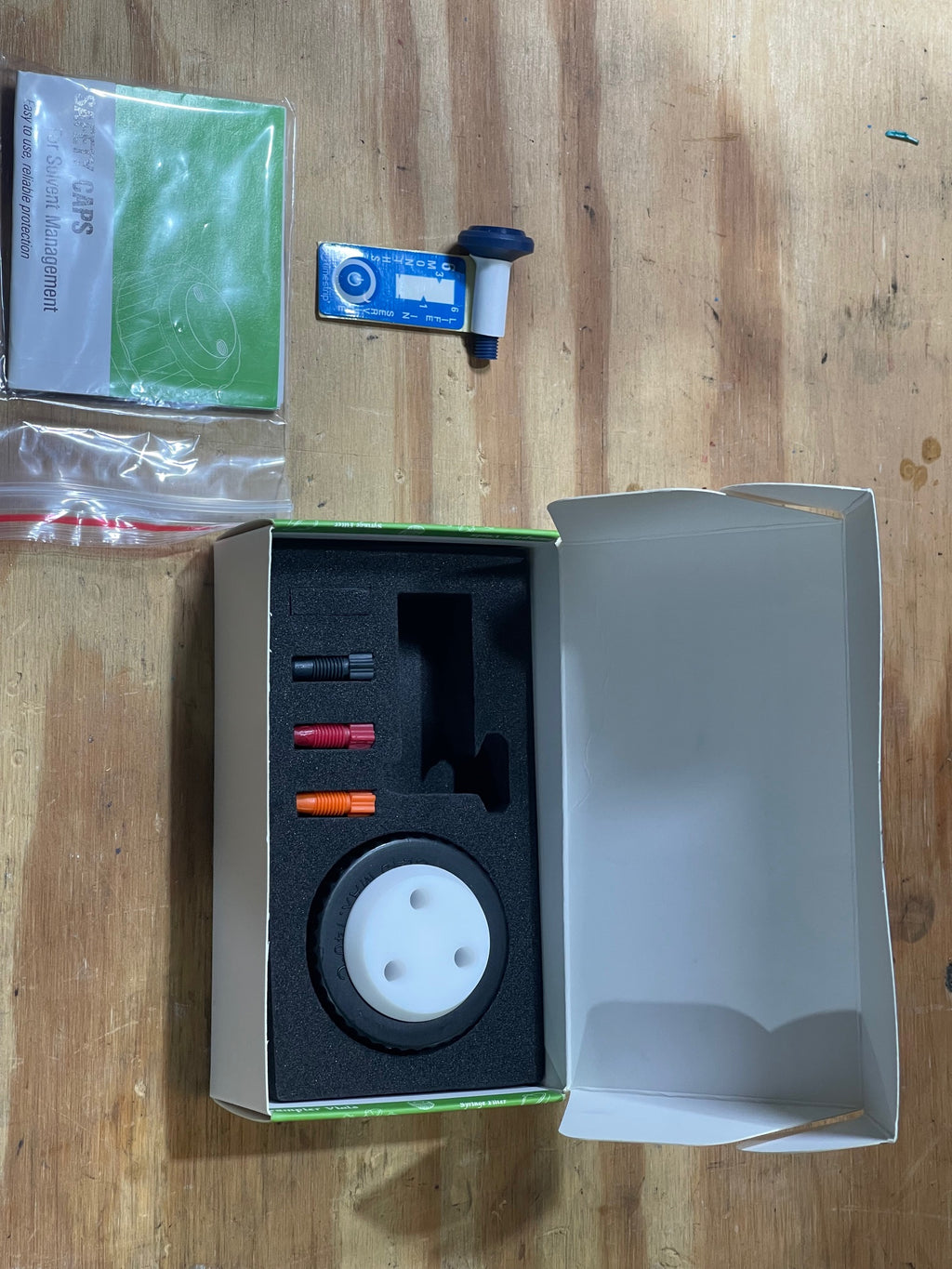

🟦 INCLUDED IN THIS KIT
- GL45 3-port safety cap
- Integrated vent filter (port-mounted)
- 6-month replacement indicator (Timestrip)
- Color-coded fittings and plugs
- Instruction manual
👉 Complete system for immediate installation
🟦 VAPOR CONTROL OPTIONS
Standard (Included):
Integrated Vent Filter
- Provides controlled ventilation and basic vapor reduction
- Replace every ~6 months
- Built-in replacement indicator
For Enhanced Protection:
External Activated Carbon Exhaust Filter (Recommended Upgrade)
- Higher adsorption capacity for VOC vapors
- Ideal for higher solvent volumes or continuous operation
- Connects directly to vent port
👉 Recommended for multi-instrument setups or higher solvent throughput
🟦 COMPATIBILITY
- Fits GL45 laboratory bottles
- Compatible with major HPLC systems:
- Agilent
- Waters
- Shimadzu
- Hitachi
🟦 APPLICATIONSÂ
- Multi-instrument HPLC systems
- High-throughput laboratories
- Pharmaceutical QC labs
- Environmental testing labs
- Battery and chemical research
🟦 CTA
Manage multiple solvent waste lines safely with a complete vapor-controlled system.
👉 Order today or request a quote.
Contact Info: sales@jmscience.com; Tel: 716-774-8706
