Description
EV-2000L Azeotropic Distillation System for High-Boiling Matrices
Selective Water Recovery for NMP-Based Lithium-Ion Cathode Slurry and Oils

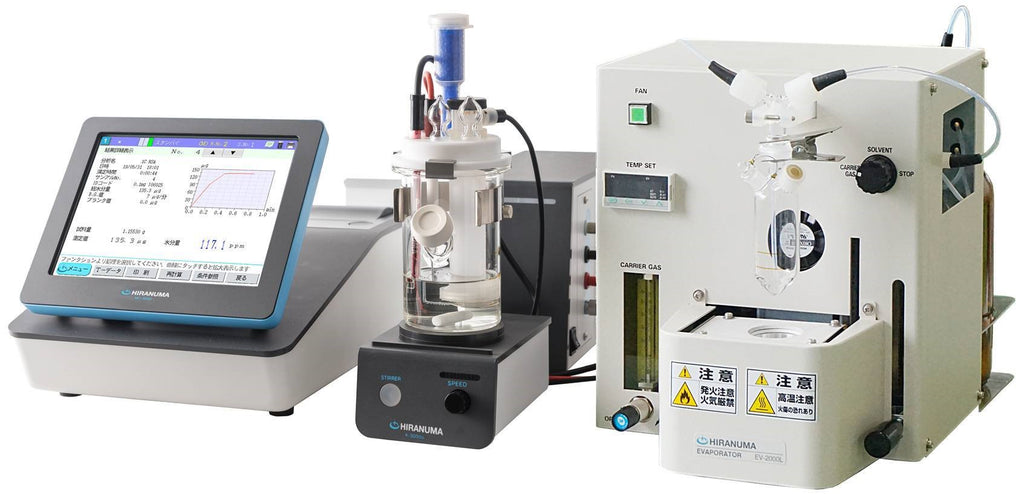

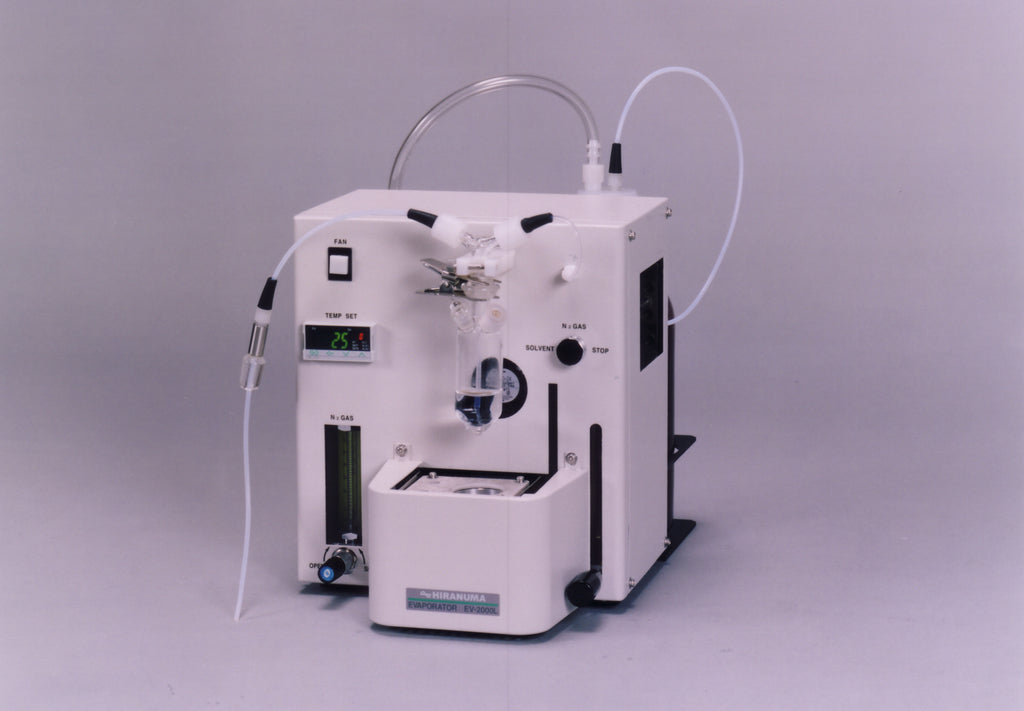

The EV-2000L is a unique azeotropic distillation accessory designed for accurate moisture determination in high-boiling and matrix-heavy samples. It is particularly effective for NMP-based lithium-ion cathode slurry, lubricating oils, greases, and other complex materials where conventional vapor oven systems fail due to solvent condensation in transfer lines.
Unlike traditional heating vaporization units, the EV-2000L selectively removes water using an azeotropic solvent (n-octane, toluene or xylene), preventing transport of high-boiling solvents such as NMP into the Karl Fischer titration cell.
Why Conventional Vapor Systems Struggle with LIB Slurry
• NMP boiling point ~202°C
• Vapor condensation in transfer tubing
• Plastic transfer line degradation when heated
• Inconsistent moisture recovery
• High maintenance burden
The EV-2000L eliminates these issues by retaining high-boiling solvents in the distillation flask while transporting only water azeotrope vapor to the KF cell.
Why the EV-2000L is Different
-
Exclusive to JM Science / Hiranuma systems – no other Karl Fischer manufacturer offers a comparable accessory.
-
Manual or fully automated – available as a standard unit or as an automated model with 20-position autosampler, ideal for high-throughput labs.
-
Improved accuracy & reproducibility – eliminates interference from oil additives such as detergents, dispersants, and anti-oxidants, which can otherwise deteriorate the KF anode solution
-
Environmentally safer – uses n-octane, a lower-hazard solvent, reducing environmental and health risks while maintaining accuracy
-
Lower operating costs – reduces frequency of exchanging KF reagents by minimizing anode solution deterioration; when paired with a fritless (single-cell) KF setup, it also reduces cathode solution consumption
Applications
The EV-2000L is particularly valuable for:
- • Lithium-ion cathode slurry (NMP-based)
• Battery anode materials
• Lubricating oils (engine, hydraulic, gear oils)
• Petrochemicals & fuel additives
• Greases & specialty oils
• Polymer and resin systems
By combining Karl Fischer titration with azeotropic distillation, the EV-2000L enables accurate, reproducible water determination even in heavily-additized oils — something traditional KF titrators cannot achieve.
Emerging Applications: Lithium-Ion Battery Slurry
The EV-2000L azeotropic configuration shows strong potential for moisture determination in NMP-based cathode slurry, where conventional vaporization systems may experience transfer line condensation.
EV-2000L Oil Evaporator Models
| Feature | EV-2000L (Manual) | EV-2000L Automated (with 20-position autosampler) |
|---|---|---|
| Sample Loading | Manual sample introduction | Automated carousel with 20 positions |
| Throughput | Low to moderate (1 sample at a time) | High throughput – unattended analysis of multiple oil samples |
| Labor Savings | Operator required for each sample | Minimal operator involvement once samples are loaded |
| Best For | Small labs, R&D, occasional oil analysis | QA/QC labs, high-volume testing, production environments |
| Accuracy & Reproducibility | High | High – identical methodology, automated consistency |
| Cost Efficiency | Lower initial cost | Reduces labor costs, reagent use, and turnaround time |
| Unique Advantage | Precise KF analysis of oils with azeotropic distillation | Scalable, fully automated solution exclusive to JM Science KF systems |
Frequently Asked Questions (FAQ) – EV-2000L Oil Evaporator
Q1. Why can’t standard Karl Fischer titrators measure moisture directly in oils?
Lubricating oils and greases often contain additives (detergents, dispersants, antioxidants) that interfere with the Karl Fischer reaction and rapidly deteriorate the anode solution. The EV-2000L avoids this by separating water from the oil sample using azeotropic distillation.
Q2. What solvent does the EV-2000L use?
The EV-2000L operates with n-octane, toluene or xylene as the azeotropic solvent. Solvent selection depends on application requirements and facility safety protocols.
Q3. What types of samples can the EV-2000L handle?
It is designed for lubricating oils, greases, petrochemical samples, and fuel additives. It’s widely used in QA/QC for automotive, industrial, and energy research laboratories.
Q4. How does the automated EV-2000L improve efficiency?
The automated model features a 20-position autosampler, allowing unattended operation. Labs can load multiple samples and run them overnight or during the workday, freeing technicians for other tasks.
Q5. What is the main advantage of the EV-2000L compared to competitor systems?
No other Karl Fischer titrator manufacturer offers an oil evaporator accessory like this. It combines the accuracy of KF titration with azeotropic distillation, providing unique capability for oil and lubricant testing.
