Optizen Alphalook Photodiode Array Detector UV-Vis Spectrophotometer | K Lab

K Lab

Sale price$9,100.00 USD


By using Photodiode array detector to collect and handle simultaneously all wavelength of a light in the range of UV-Vis, the device can reduce the analysis time and lower the error from the experiment.

PDA UV-Vis spectrophotometer can obtain an Ultraviolet-to-NIR broad spectrum at one time by using a simple and precise optical device and check the result value of the wavelength data that the user wants to see. In addition, the product can handle very conveniently a complicate sample or a lot of samples with a simple touch by using compatible accessories.

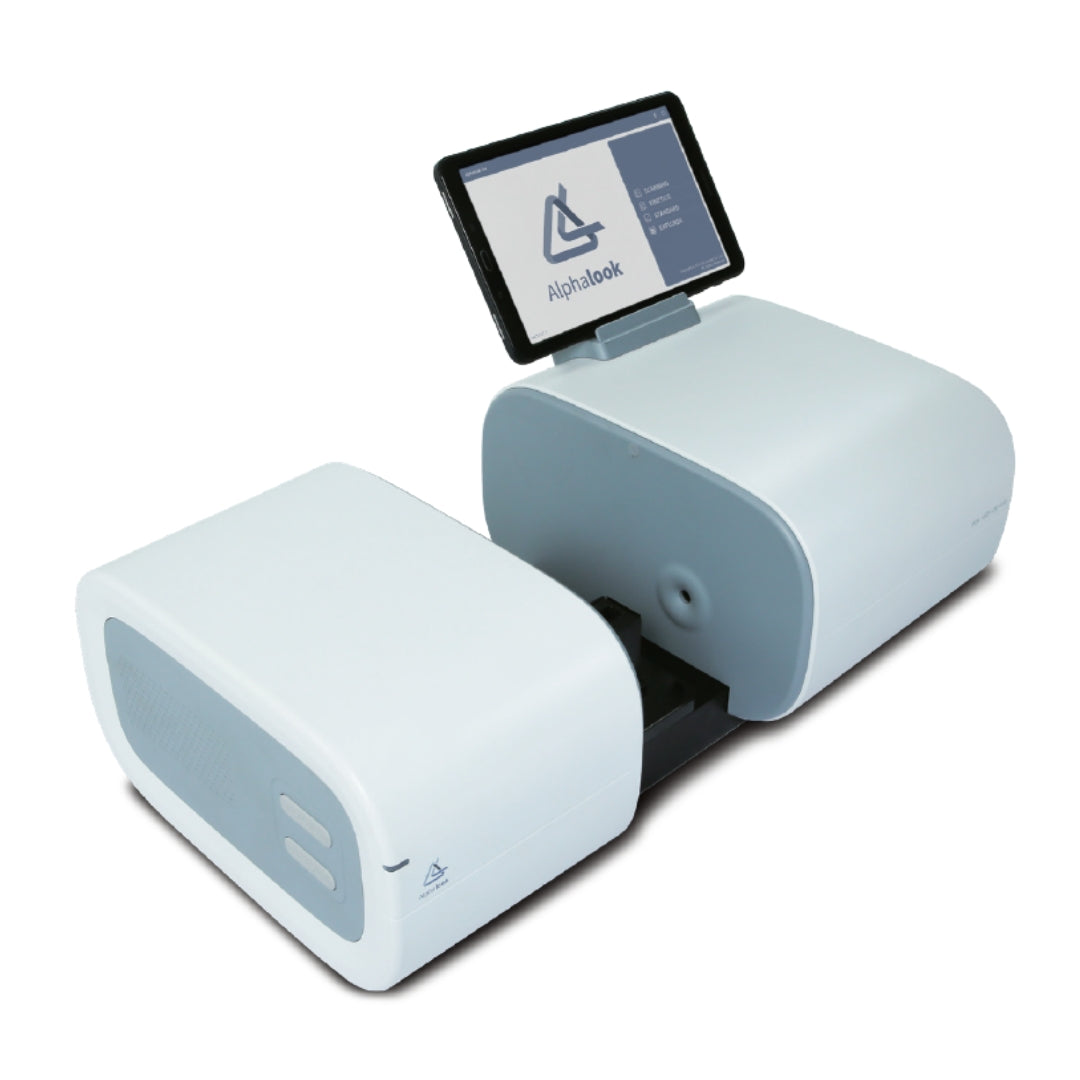

OPTIZEN Alphalook is a spectrophotometer to measure the wavelength of the light from ultraviolet rays, visible rays to near-infrared rays(190 - 1100 nm) all together in real time by using Photodiode array.

The device takes at most 2 seconds to measure all range of the wavelength and is suitable for checking repetitive wavelength analysis and dynamic characteristic of spectrum and performing quantitative analysis in the various range of wavelength. In addition, its exterior touch button enables to measure easily the sample and it can be compatible with Android™-based tablet and Windows®-based PC.


  • PDA Type (1024 pixels)
  • Spectral Bandwidth : 1 nm
  • Measurement Time: Min. 1 second (Full range)
  • The exterior button is available for the simple and fast measurement.
  • Quartz coating treatment to prevent the high-precision parts from a polluted material.
  • Easy replacement of a cell holder owing to using screws.
  • It can operate without additional transformer and power stabilizer even in unstable power supply.
  • Swift and precise measurement through electrical shutter control.
  • Compatibility of analyzed data with PDF and EXCEL.
  • Provides a clear screen.
  • Can be used semi-permanently without lamp replacement by using Xenon Flash Lamp
  • Real-time measurement of the spectrum of all areas


Photometrics System Photodiode array, PDA
Light Source(s) Xenon Flash Lamp
Detector Photodiode array
Spectral Bandwidth 1.0 nm (190 - 1100 nm)
Wavelength Range 190 - 1100 nm
Wavelength Display (setting) 0.1 nm
Wavelength Accuracy < ± 0.5 nm
Wavelength Repeatability < ± 0.1 nm
Measurement Time Min. 1 second (Full range)
Photometric Accuracy < ± 0.005 A (NIST 930E filters), < ± 0.01 A (Potassium dichromate)
Photometric Noise < 0.0005 A (at 500 nm)
Baseline Stability (RMS) < 0.001 A/h
Standard Cell Holder Single cell
Operating System (OS) Windows®
Dimensions (W*D*H) 587 mm*315 mm*203 mm
Other Interface Ethernet
Power Requirement 90 - 264 VAC, 47 - 63 Hz
Weight 14.52 kg

Additional Resources

 Download the Brochure
