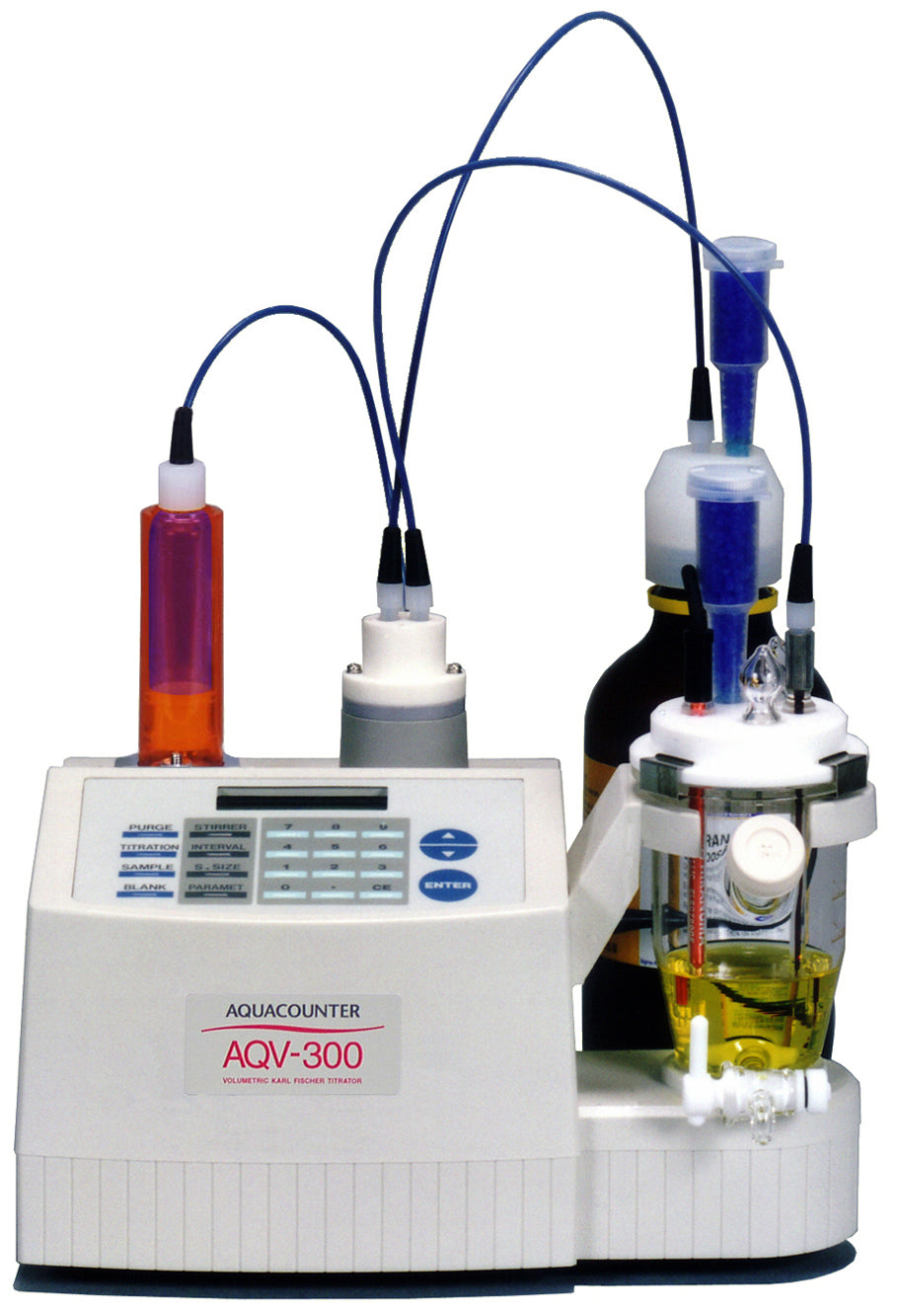

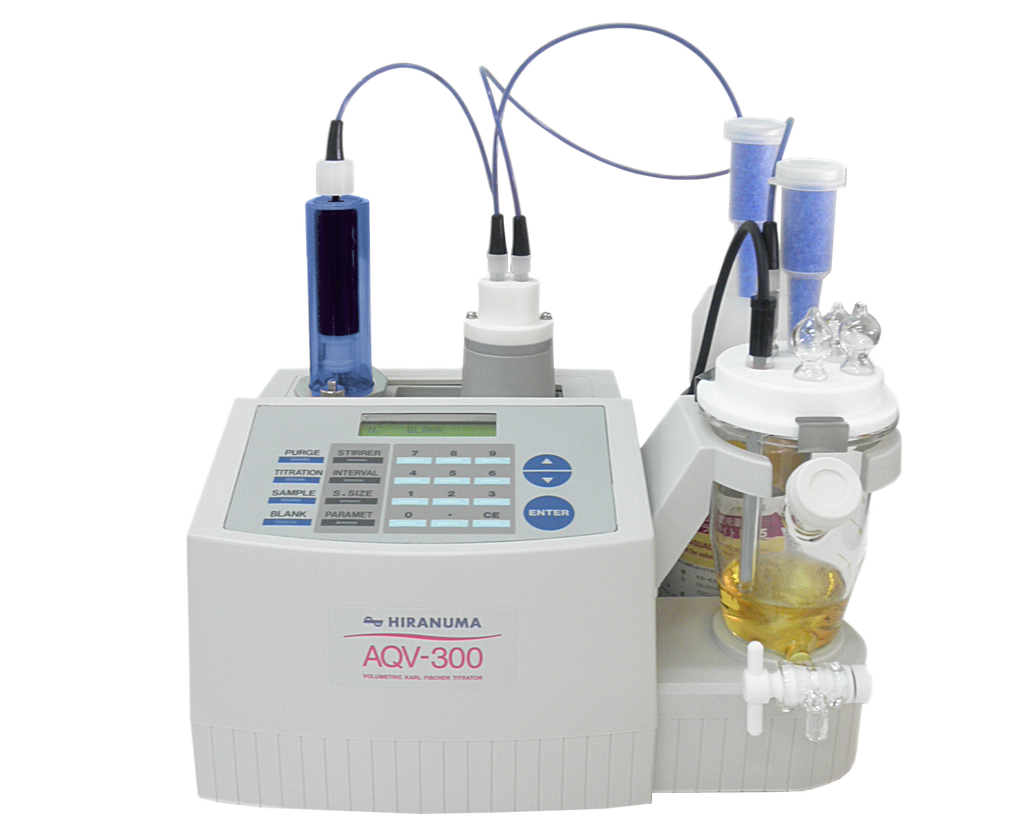

Karl Fischer Titrator AQV-300 | Volumetric Moisture Analyzer | High Capacity

The AQV-300 Volumetric Karl Fischer Titrator is a compact, reliable system designed for routine moisture determination across a wide range of sample types.

Ideal for food, petroleum, and chemical laboratories, the AQV-300 provides:

• Accurate moisture measurement from ppm to percent levels
• Simple operation for everyday use
• Reliable performance for routine quality control

👉 A cost-effective solution for laboratories requiring dependable Karl Fischer analysis

Volumetric Karl Fischer titrator for higher moisture ranges up to 100%. Ideal for chemicals, petrochemicals, and food samples. Accurate, rugged, and easy to operate.

🔬 When to Use AQV-300

Choose the AQV-300 when:

• Moisture levels are moderate to high
• Routine QC testing is required
• Ease of use is a priority
• Budget is a consideration

AQV-300 vs MOIVO-A19

Videos

• AQV300 Assembling the titration cell
• AQV300 Preparing the KF Reagent
• AQV300 Running the Sample
• AQV300 Standardization of the KF Reagent

Download the Brochure

Specifications

ITEM	SPECIFICATIONS
Titration method	Volumetric Karl Fischer reagent titration method
Titration control method	Intermittent addition of titrant while approaching the end point. (1) Control using a waiting interval timer of 1 - 99sec (INTERVAL). (2) Control by titration timer. (T-TIMER: 1 - 99min.)
End point detection	DC polarization potential difference detection
Buret capacity	10mL Reproducibility ±0.01 mL (for full discharge, standard deviation for n=5)
Liquid contact material	PTFE, ceramic and glass
Number of burets	1
Display screen	2 lines, 16 digit LCD with backlighting
Display units	mL (min. display is 0.001mL), mg H2O, %, or ppm
Measuring range	10 ppm - 100%
Minimum volume of titrant addition	0.005mL or 0.01mL
Calculation function	Concentration, factor standardization, statistics, recalculation
Titration cell capacity	150mL
Minimum volume of solvent	Approx. 30mL
External input/output	Two RS-232C ports Port 1 (HOST) for PC connection. Port 2 (BALANCE) for Balance connection.
Printers	Optional thermal and impact printer - please inquire
Power supply / Power consumption	AC100 - 240V, 50/60 Hz, 100 VA
Dimensions	310 (W) x 270 (D) x 300 (H) mm
Weight	Approx. 6kg
Safety approval	CE approved



Ideal Applications

• Food and beverage moisture content
• Petroleum and oil analysis
• Chemical raw materials
• Pharmaceutical formulations

🔍 Key Features:

• Accurate volumetric titration for high-moisture samples
• Built-in magnetic stirrer and function guide display
• Supports customizable methods for various sample types
• Compact design with GLP-compliant data output
• Compatible with oils, solvents, powders, and viscous liquids

💰 Why the AQV-300 Makes Sense for Your Lab:

• Designed for routine and regulated environments
• Simple setup, low maintenance, high reliability
• Fully backed by JM Science's technical support team

---

📋 See This Instrument in Action

Trusted by pharmaceutical, food & beverage, and energy labs across North America.
36 Years of Expertise · 94 Application Notes · Pittcon Exhibitor · Trusted Since 1989

• Moisture Determination in Ethers & Esters — pharmaceutical & specialty chemical analysis
• Browse all 94 Karl Fischer & Potentiometric Titration Application Notes →

Used by pharmaceutical, food & beverage, and energy labs across North America.

---

Annual Performance Assurance Kit Available

✔ Recommended: Maintain peak performance with JM Science KF Performance & Maintenance Kits (Designed for 300 Series).

Includes replacement electrode, septa, silica gel refill, fluorine grease, and certified water standard.

→ View AQV-300 Performance Assurance Kit
