Description
Flom has a wide variety of fittings in different materials to fit all the different durability, specs and application needs of most Liquid Chromatography systems. The Flom Flat Seal Series fits a wide variety of tubing from 1/16" to 1/8". Wetted path ferrule is Teflon. Use for low-pressure applications only.
Flat Seal Ferrules
 |
 |
 |
|

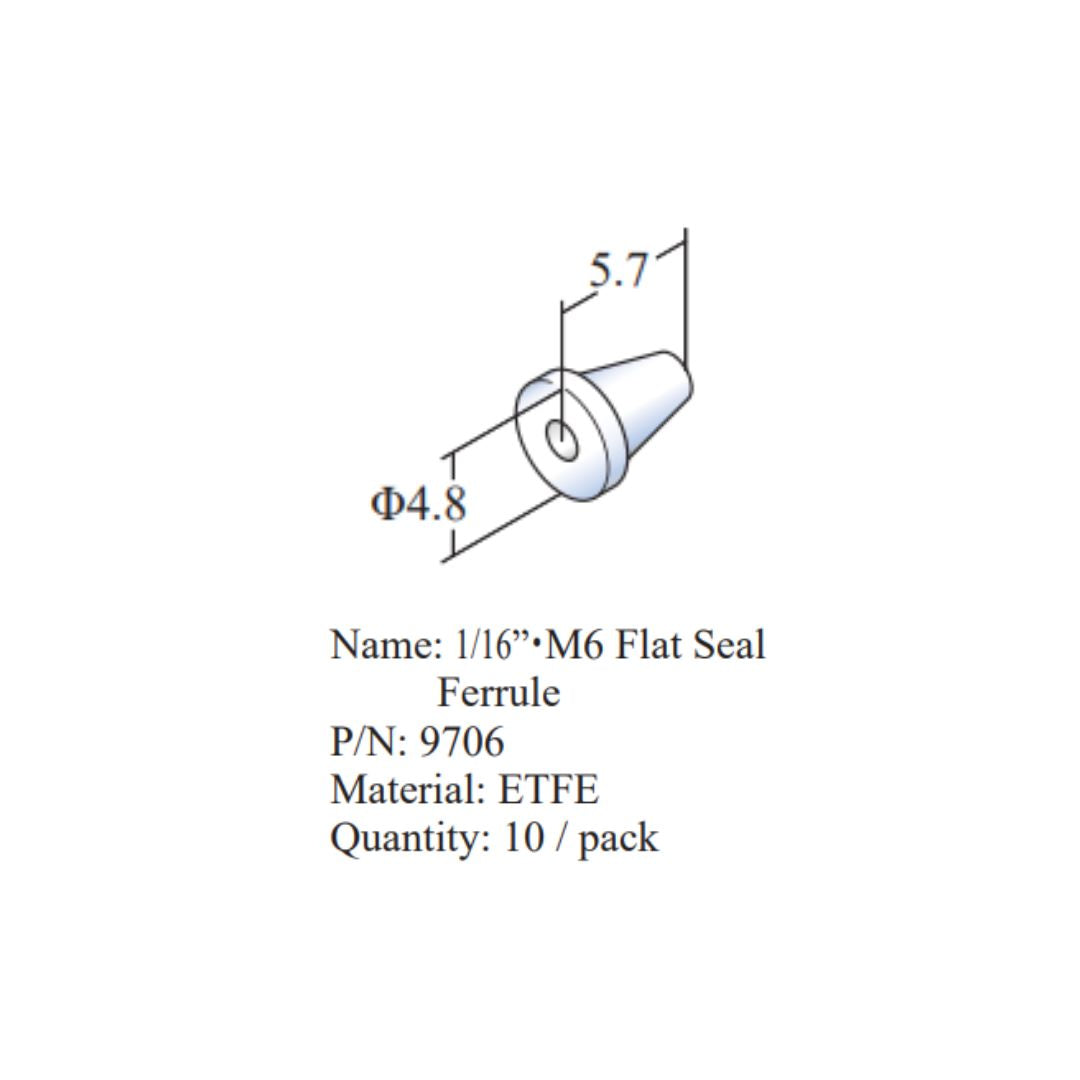

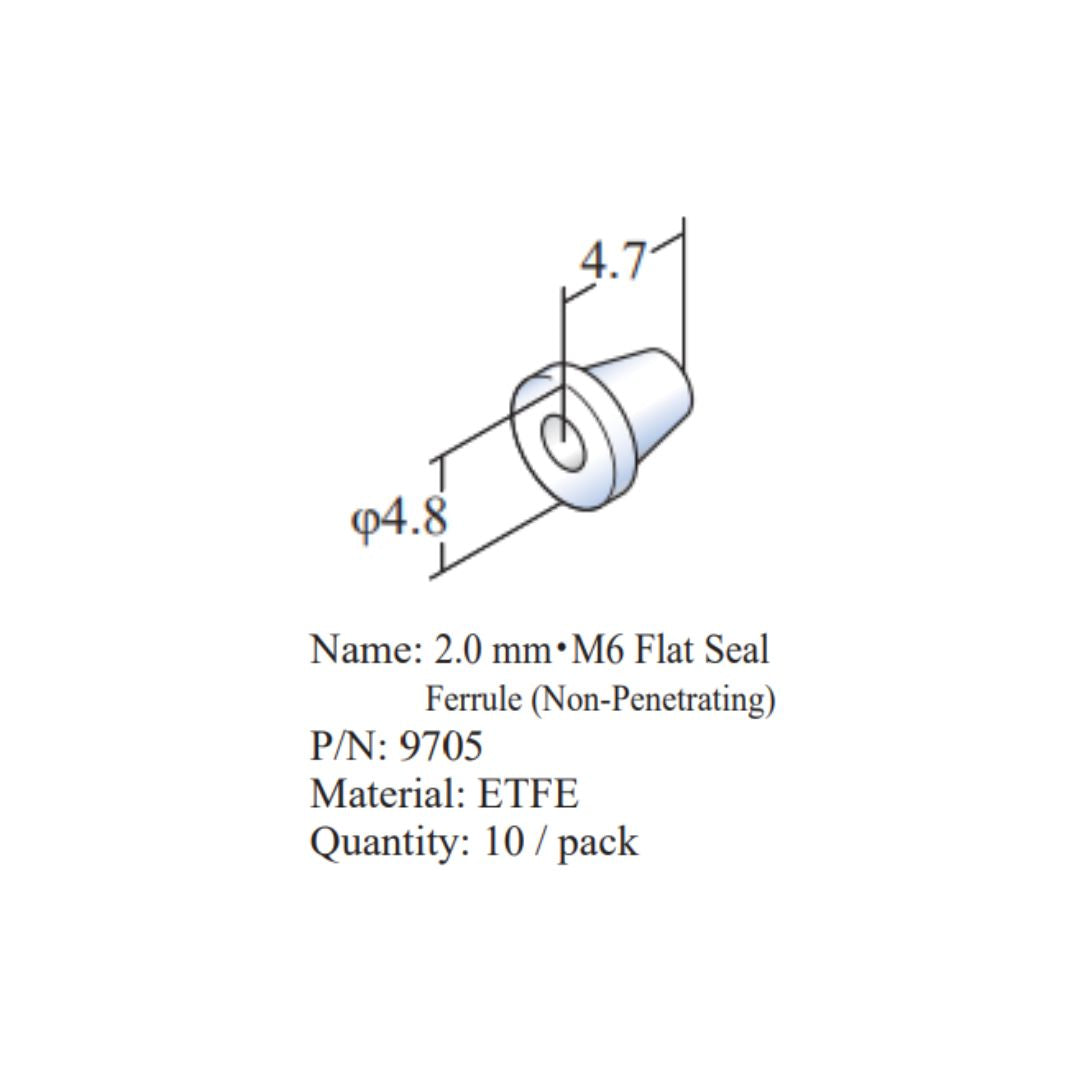

| Product Name | φ3 Flat seal ferrule | φ2, M6 Flat seal ferrule | 1/16 Flat seal ferrule |
| M6, OD 3.0mm Tube | No. 1/4-28UNF, OD 2.0mm Tube | M6, OD 1/16" Tube | |
| Part Number | 9704 | 9705 | 9706 |
| *use with P/N 9751 | |||
| Material | ETFE |
ETFE | ETFE |
| Quantity |
10 | 10 | 10 |
Flat Seal Fittings
 |
 |
 |
 |
 |
 |
|

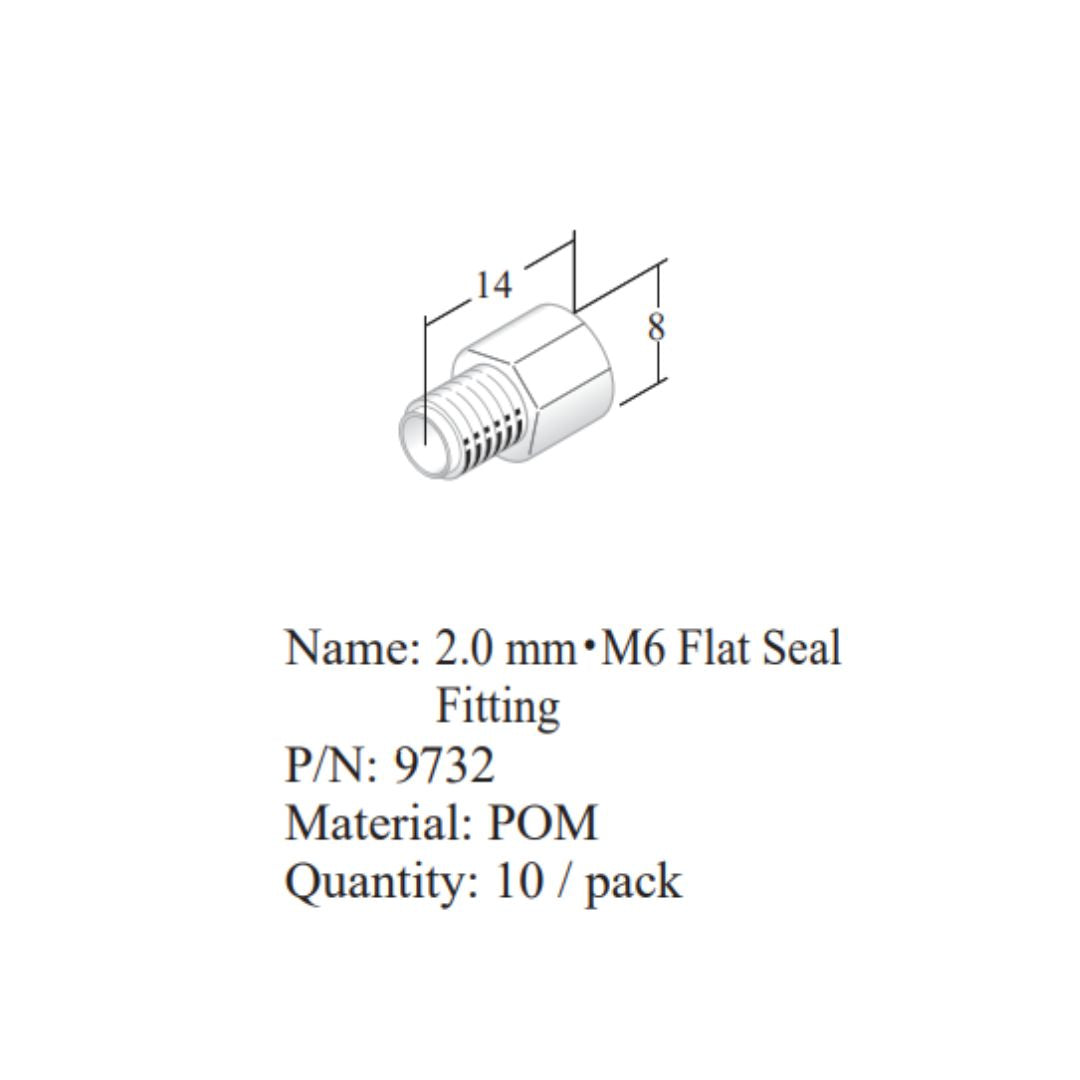

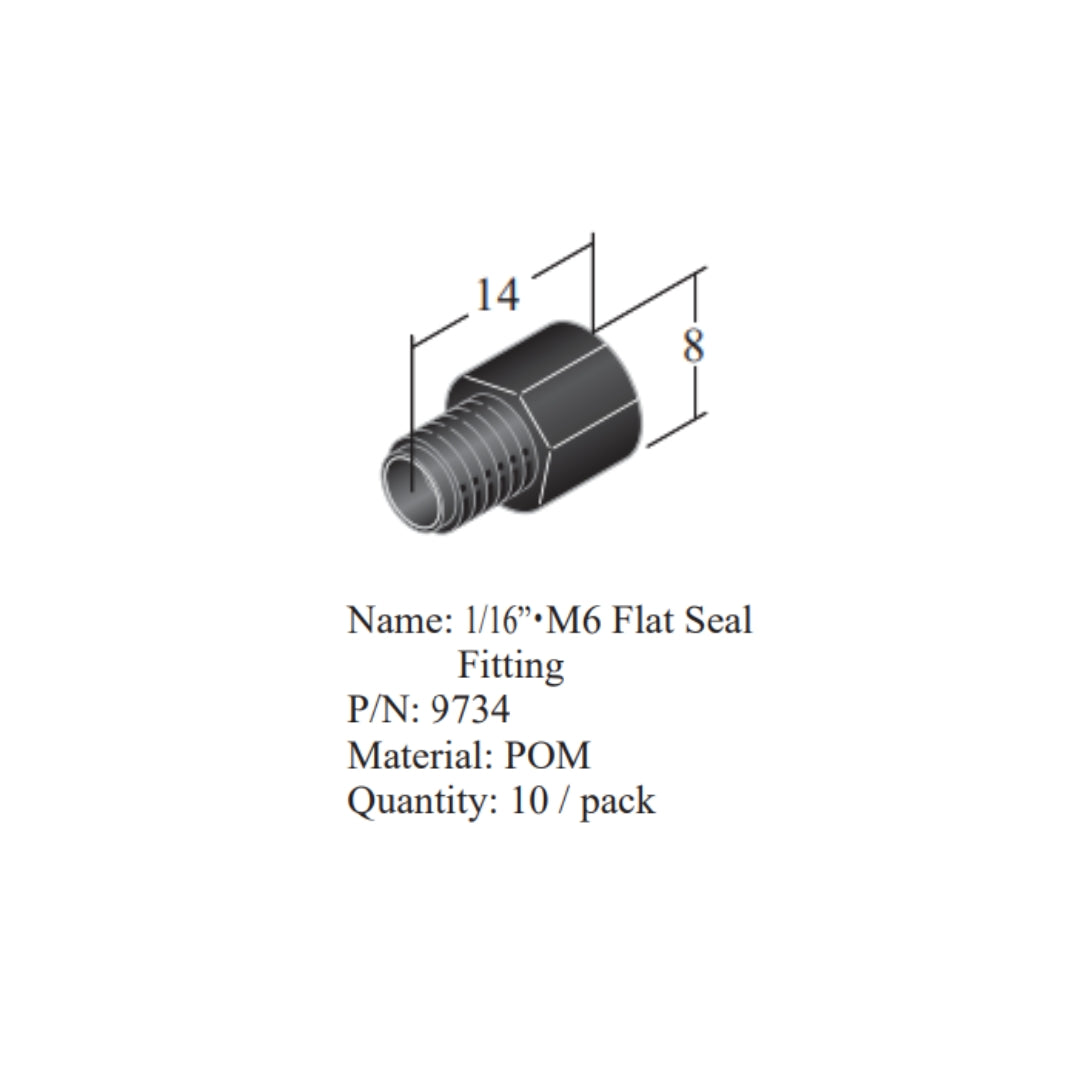

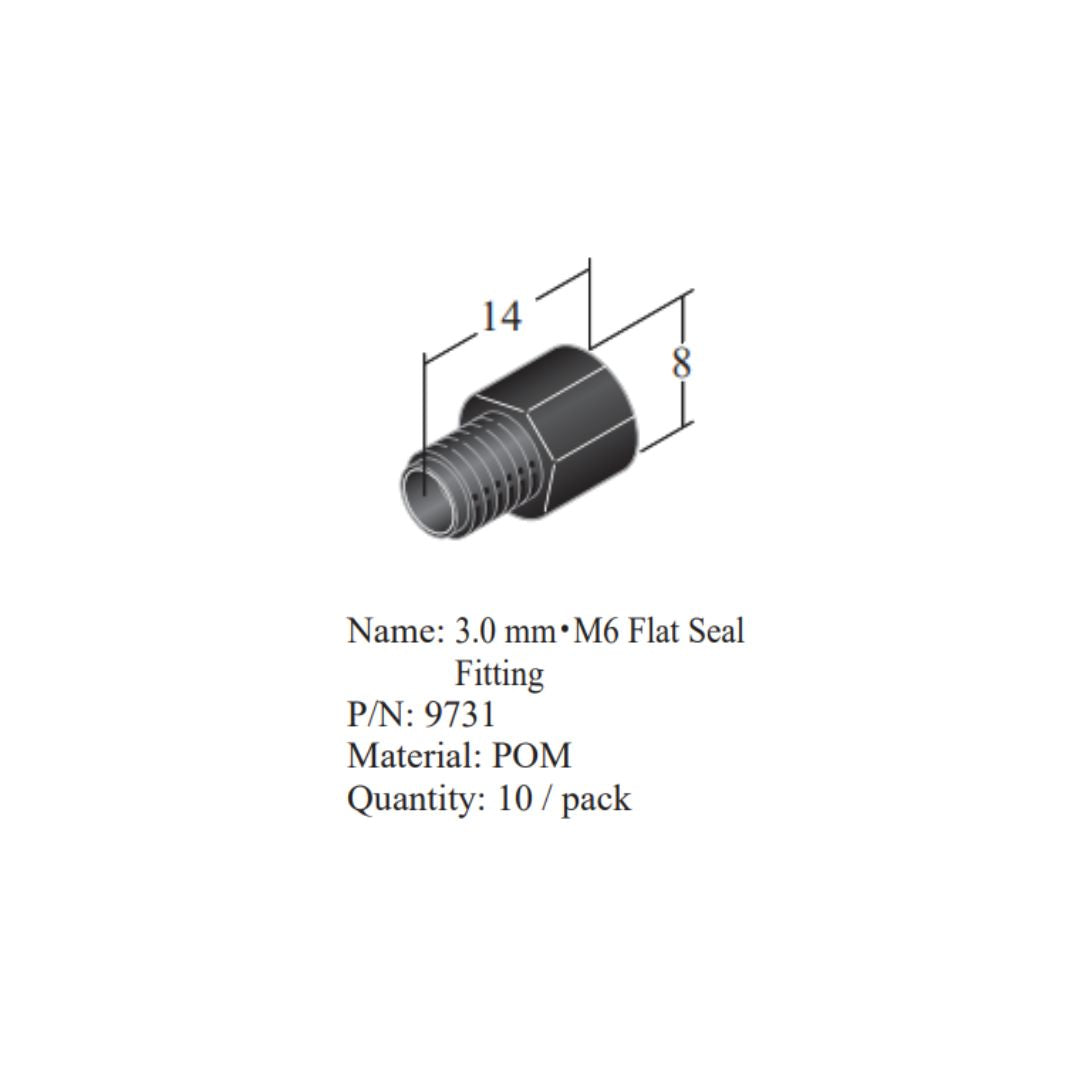

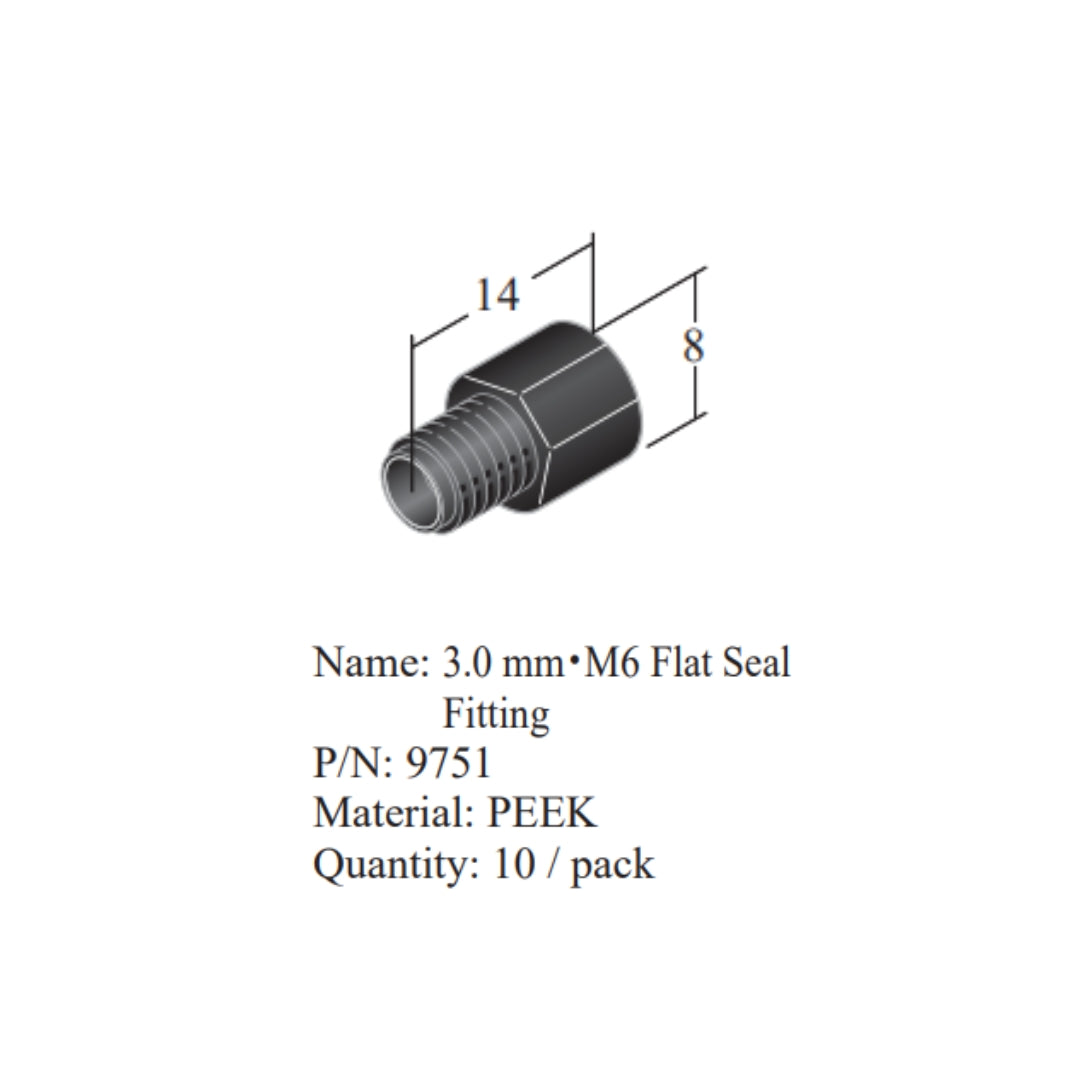

| Product Name | φ3・M6 Flat seal fitting | φ2・M6 Flat seal fitting | 1/16・M6 Flat seal fitting | φ3・M6 Flat seal fitting | φ2・M6 Flat seal fitting | 1/16・M6 Flat seal fitting |
| M6, OD 3.0mm Tube | M6, OD 2.0mm Tube | M6, OD 1/16" Tube | M6, OD 3.0mm Tube | M6, OD 2.0mm Tube | M6, OD 1/16 Tube | |
| Part Number | 9731 |
9732 |
9734 |
9751 | 9752 | 9753 |
| Material | POM | POM | POM | PEEK | PEEK | PEEK |
| Quantity |
10 | 10 | 10 | 10 | 10 | 10 |
