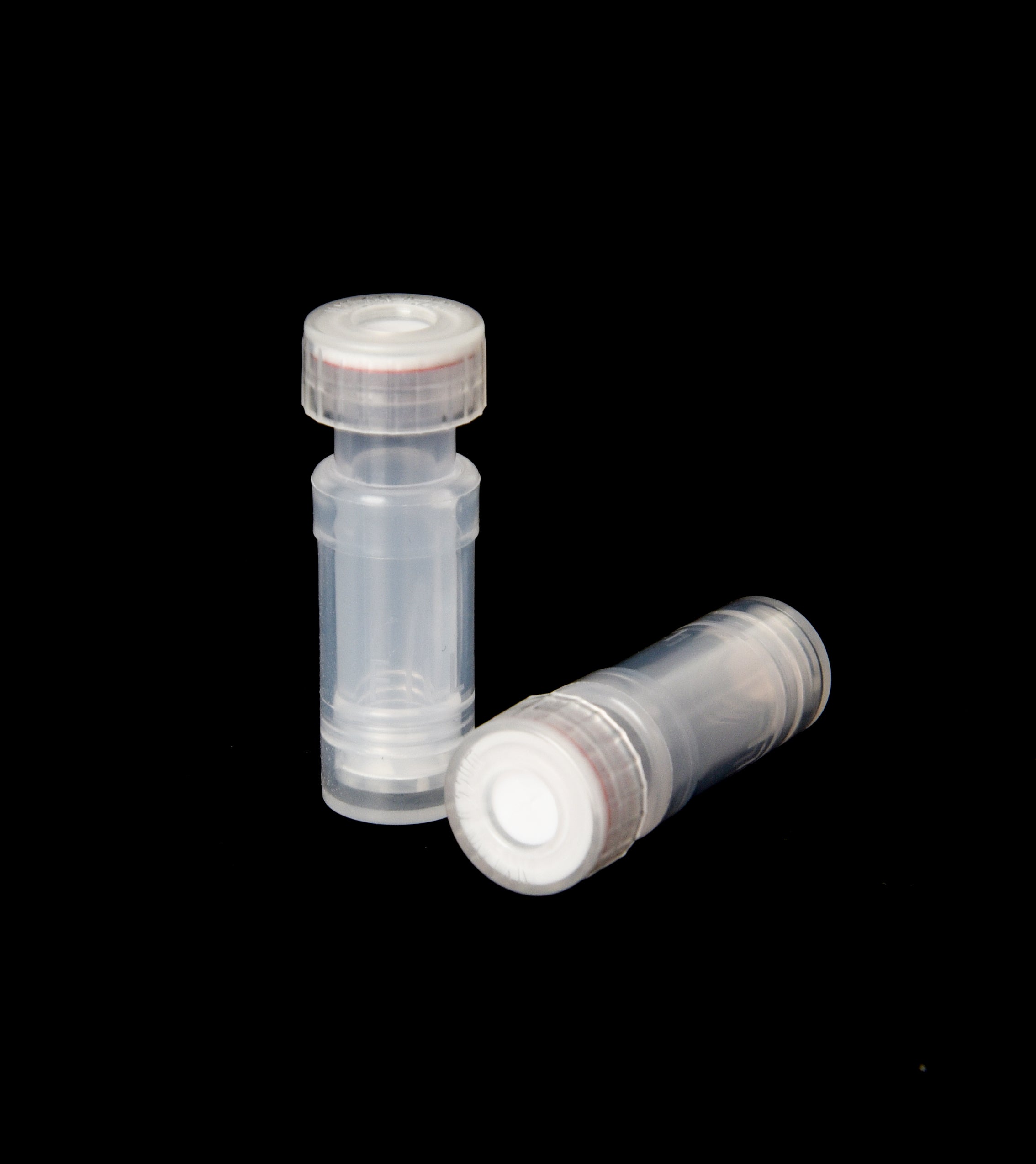

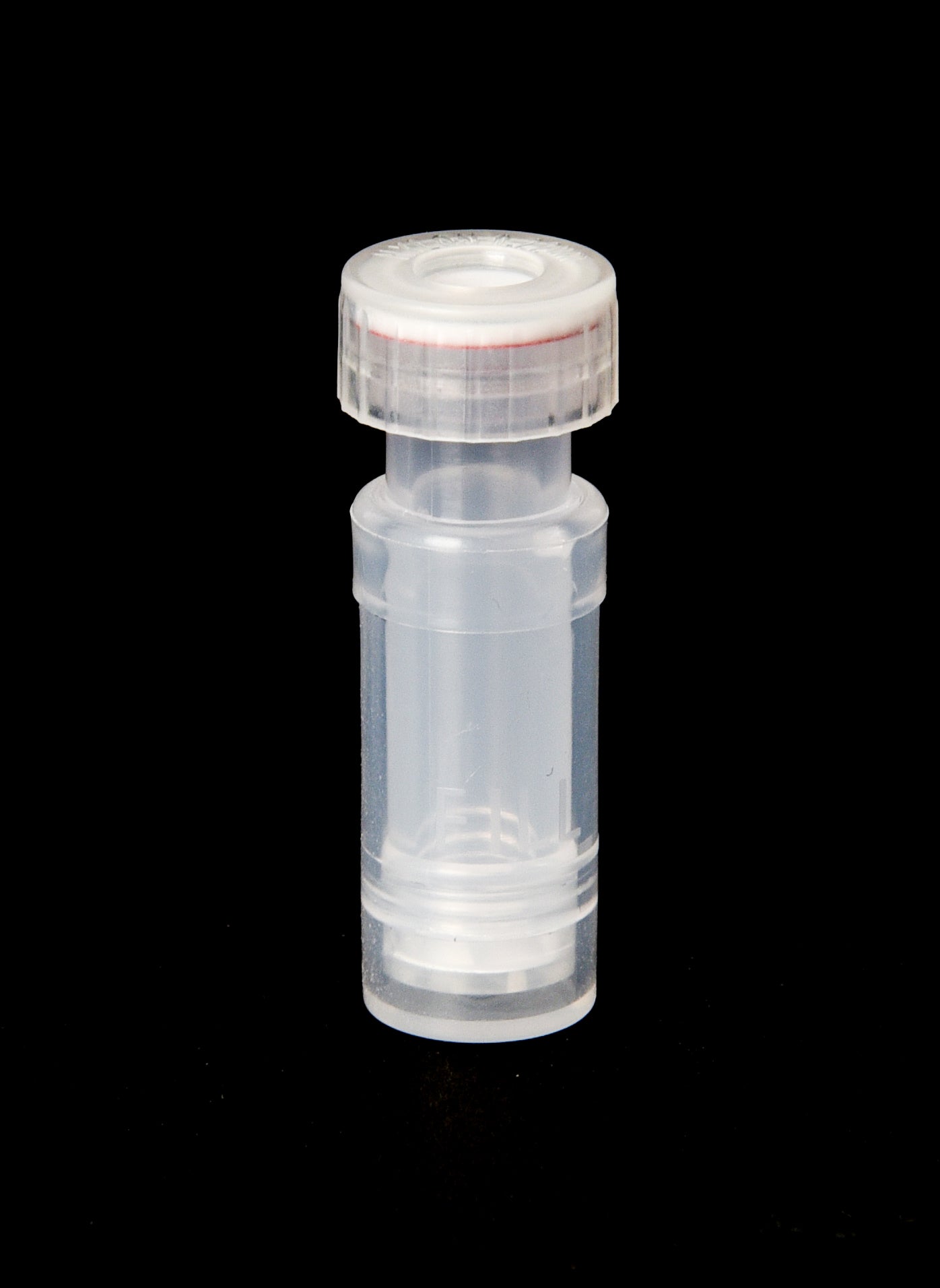

HPLC Filter Vials for Efficient Sample Preparation

Designed for routine HPLC and UHPLC workflows, JM Science filter vials integrate membrane filtration and sample containment into a single device. This streamlined format reduces handling steps, improves reproducibility, and supports high-throughput analytical laboratories.

Adopted by academic, industrial, and contract research laboratories, these filter vials provide consistent filtration performance while simplifying sample preparation.

Supporting academic, industrial, and contract research laboratories across North America.

---

🔬 Why Laboratories Use Filter Vials

✔ Streamlined Workflow

Eliminate syringe filtration and sample transfer steps. Load, filter, and inject from a single vial.

✔ Improved Reproducibility

Reduced manual handling minimizes variability between operators and runs.

✔ Time Efficiency

Ideal for high-throughput HPLC and UHPLC laboratories.

✔ Reduced Risk of Contamination

Integrated design lowers risk of particulate introduction during transfer.

---

⚙ Technical Specifications

• Membrane Type: PVDF (Hydrophilic) (adjust if PTFE option exists)

• Pore Size: 0.2 µm (0.45 µm available)

• Housing Material: Polypropylene

• Retention Efficiency: >98%

• Pack Size: 100 filter vials per pack

• Designed for compatibility with major autosamplers

Compatible with instruments from:
Agilent®, Waters®, Shimadzu®, Thermo Scientific® and other standard autosampler platforms.

---

🧪 Typical Applications

• Pharmaceutical analysis

• Environmental testing

• Academic research laboratories

• Contract research organizations (CROs)

• Quality control laboratories

• Method development workflows

---

🔄 Traditional vs Integrated Workflow

Traditional Process
Sample → Syringe → Filter → Transfer to vial → Injection

JM Science Filter Vial Process
Sample → Filter vial → Injection

Fewer steps. Less handling. Greater consistency.

---

📦 Packaging & Quality

Each pack contains 100 filter vials securely packaged for laboratory handling and transport. Consistent membrane and housing quality ensure reliable performance across batches.

Certificate of conformity available upon request.

---

📩 Request Pricing or Volume Availability

For institutional pricing, volume commitments, or sample availability, please contact JM Science directly.

---

Agilent®, Waters®, Shimadzu®, and Thermo Scientific® are registered trademarks of their respective companies. JM Science products are not affiliated with or manufactured by these companies.

• How to Use?

1. Fill - Use a pipette to add sample to the fill line
2. Cover - Twist gently to ensure a secure seal
3. Plunge - To filter the sample, press the plunger slowly for about three seconds

Specifications

PN#	FSBNY022N	FSBNY045N	FSBPTFE022N	FSBPTFE045N	FSBPES022N	FSBPES045N
Color	Natural	Natural	Natural	Natural	Natural	Natural
Membrane	Nylon	Nylon	PTFE	PTFE	PES	PES
Housing	PP	PP	PP	PP	PP	PP
Pore size	0.22 μm	0.45 μm	0.22 μm	0.45 μm	0.22 μm	0.45 μm
Size	Diameter: 10 mm Height: 33 mm
Sterile	No	No	No	No	No	No
Filling vol	480 ul	480 ul	480 ul	480 ul	480 ul	480 ul
Dead vol	30 ul	30 ul	30 ul	30 ul	30 ul	30 ul
Pressure	2.5 bar (36 psi)	2.5 bar (36 psi)	2.5 bar (36 psi)	2.5 bar (36 psi)	2.5 bar (36 psi)	2.5 bar (36 psi)
Filtration Area	0.45 cm²	0.45 cm²	0.45 cm²	0.45 cm²	0.45 cm²	0.45 cm²
Max operation temp	121 °F (50 °C)	121 °F (50 °C)	121 °F (50 °C)	121 °F (50 °C)	121 °F (50 °C)	121 °F (50 °C)
Packaging	100/pk	100/pk	100/pk	100/pk	100/pk	100/pk
Packaging	1000/pk	1000/pk	1000/pk	1000/pk	1000/pk	1000/pk

Additional Resources

 Download the Product Brochure

Filter Vials for Fast, One-Step Sample Filtration

JM Science’s filter vials simplify and speed up your sample preparation process with integrated filtration and autosampler compatibility. Ideal for HPLC and UHPLC workflows, these all-in-one vials combine a built-in filter membrane and plunger mechanism, allowing for clean, ready-to-inject samples in seconds.

🔍 Key Features:

• One-step filtration: no syringe or syringe filter required

• Available pore sizes: 0.2 µm and 0.45 µm

• Membrane options: PTFE, Nylon, PVDF, PES, MCE

• Vial size: 12 x 32 mm, fits standard HPLC autosamplers

• Rapid filtration in under 10 seconds

• Leak-free seal with built-in plunger

• Packaged in 100-packs or custom quantities

• Reduce sample loss and contamination risk
